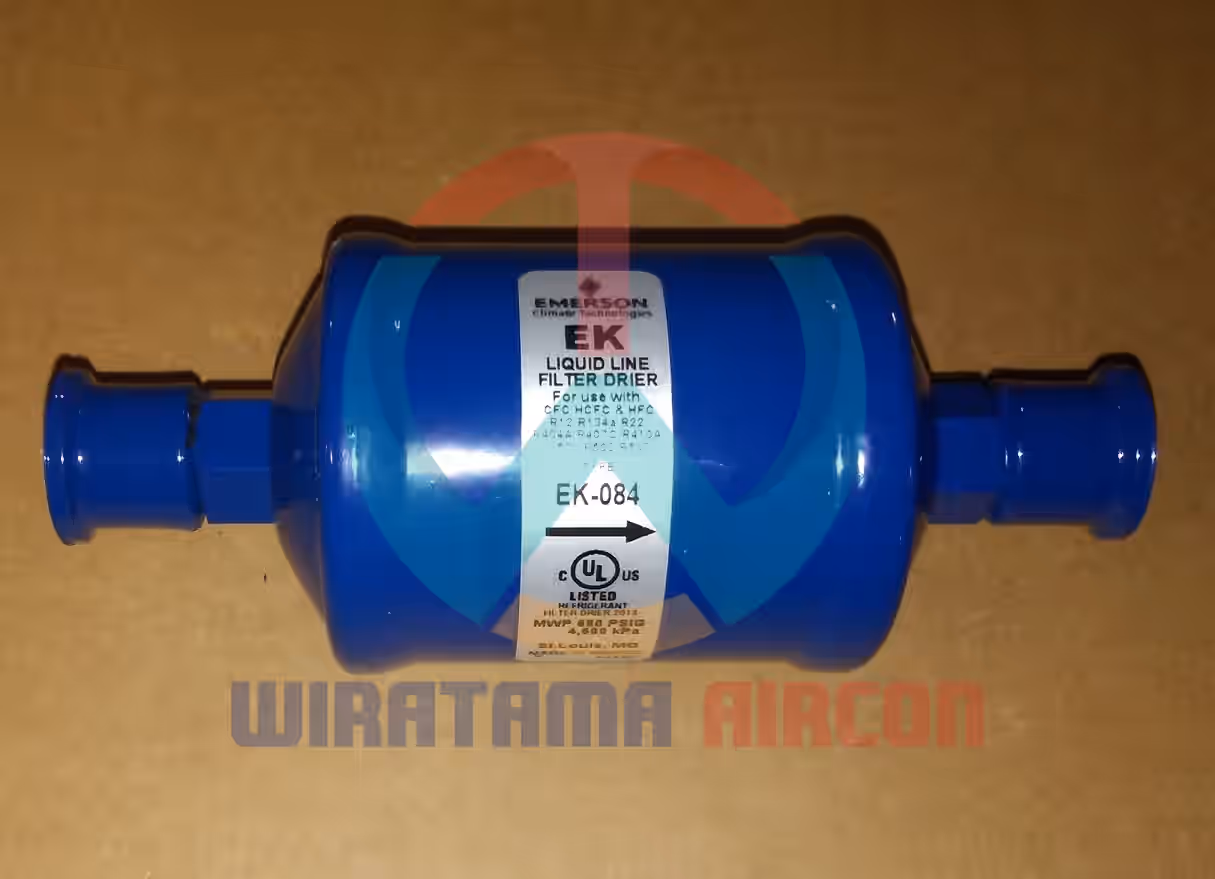

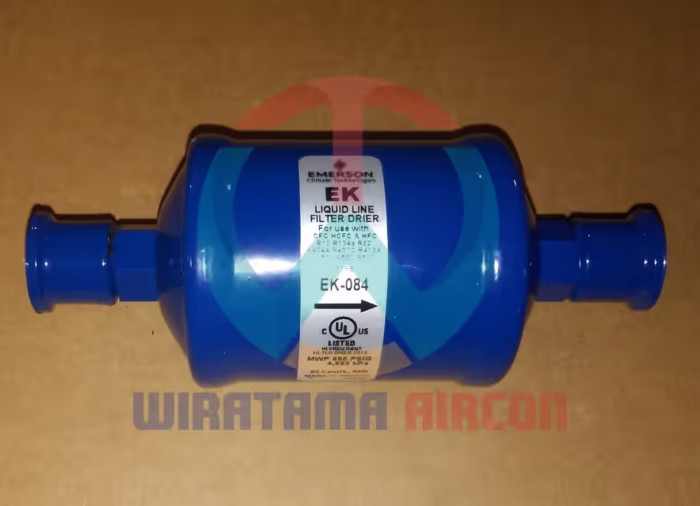

Filter Drier Emerson EK-084

Filter Drier 1/2 Inch, Flare (Drat)

Hubungi Kami

The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.

Features :

Filtration first for more effective use of surface area of desiccant
High moisture and acid removal capacity
Solid copper connections
Corrosion resistant epoxy powder paint finish
Approved for POE oils with Copeland compressors
Shock resistant steel shell construction

Specifications

- - Desiccant blend – optimized for high water capacity andacid capacity
  - Filtration: 20 microns
  - Maximum working pressure: 680 psig

The Shell

- - PED approved for PS 46 bar
  - Available with solder (Cu-plated steel connectors) and flare connections
  - Corrosion resistant powder-painted finish. Special coating for marine applications available upon request
  - Allows installation with any orientation provided the arrow is in the flow direction
  - Available in sizes 3 – 75 cubic inches

Model List

FLARE CONNECTIONS

MODEL	SIZE (inch)
EK-032	1/4”
EK-033	3/8”
EK-053	3/8”
EK-083	3/8”
EK-084	1/2”
EK-163	3/8”
EK-164	1/2”
EK-165	5/8”
EK-304	1/2”
EK-305	5/8”

SOLDER CONNECTIONS

MODEL	SIZE (inch)
EK-032S	1/4”
EK-053S	3/8”
EK-083S	3/8”
EK-084S	1/2”
EK-163S	3/8”
EK-164S	1/2”
EK-165S	5/8”
EK-304S	1/2”
EK-305S	5/8”
EK-307S	7/8”
